Deep Imaging of Subsurface Alteration Zone in the Geothermal Field Using Long-Offset Resistivity and Induced Polarization Tomography
Understanding subsurface conditions is crucial for a wide range of geological and engineering applications. Long-Offset Multichannel Resistivity Tomography has emerged as a powerful tool for obtaining high-resolution resistivity data at greater depths, making it suitable for hydrogeological studies, mineral exploration, geotechnical investigations and also geothermal and oil-gas field monitoring.
Field Data Acquisition
Field data acquisition for Long-Offset Multichannel Resistivity Tomography involves deploying a linear array of electrodes over an extended survey line to measure subsurface resistivity variations at greater depths and with improved resolution. The configuration typically uses multiple receiver channels connected to a multichannel resistivity meter, allowing simultaneous measurements from several electrode pairs. The use of multichannel systems significantly increases survey efficiency by capturing multiple data points in a single measurement cycle. Field quality control is crucial, with regular checks for electrode contact resistance, noise interference, and terrain effects. The collected apparent resistivity data is then processed and inverted using 2D or 3D resistivity inversion software to produce tomographic images of the subsurface resistivity distribution.
Subsurface Deep Imaging of Alteration Zone In The Geothermal Field

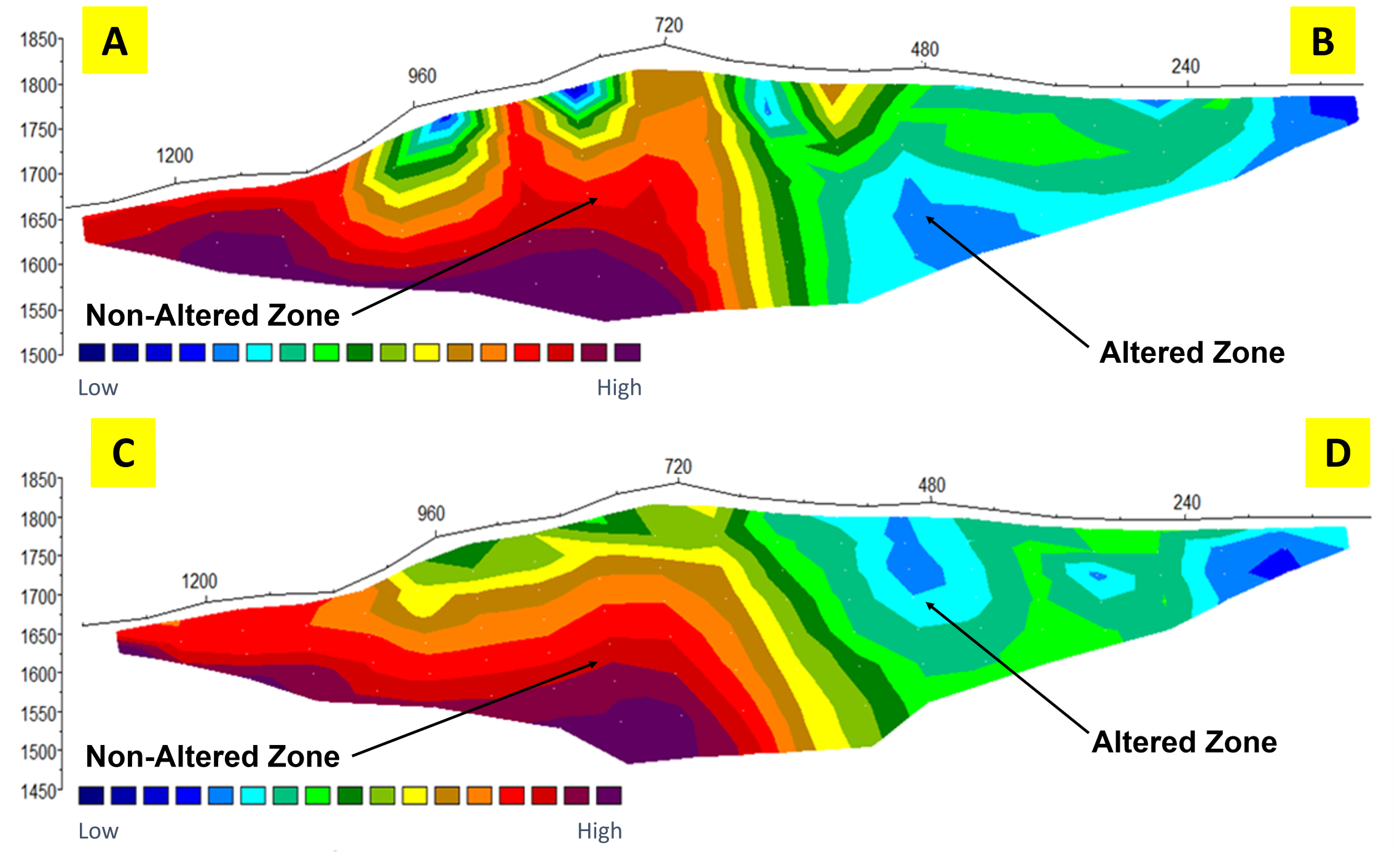

Deep subsurface imaging of geothermal alteration zones is a geophysical and geological investigation aimed at identifying and characterizing hydrothermal alteration zones beneath the Earth’s surface. By utilizing advanced imaging techniques Long-Offset Multichannel Resistivity Tomography can obtain high-resolution resistivity properties at greater depths. This information is essential for understanding fluid pathways, temperature distributions, cap rock integrity, and the overall architecture of the geothermal system. Effective subsurface imaging improves resource assessment, guides drilling decisions, and reduces exploration risk in geothermal energy development.
|
